Containerizing Windows
At the inception of Docker containers in 2013, the technology was very much exclusive to Linux. Made possible by LXC, a userspace interface for the Linux kernel containment features, this process-level isolation has served as the backbone of container technology and transforming the industry’s way of developing and deploying applications in the process. Microsoft were eager not to miss the boat and native Docker support for Windows came ‘relatively’ soon after in its Server 2016 release and offered Windows Containers as a Service (CaaS) on Azure around this time as well.
Since 2016, Windows has supported three modes of isolation:
- Process Containers - also known as Windows Server Containers (WSC)
- Hyper-V Containers - containers are isolated via a lightweight virtual machine
- HostProcess Containers - new to Windows Server 2022, allowing containers to be created within the host’s network namespace instead of their own. This mode is primed to manage Windows nodes in Kubernetes (although it won’t be covered here in this article)
There are plenty of other blogs out there that get into the weeds of Windows Containers, so the intention of this post is rather to show their operability on OpenShift.
One major distinction to note however, is this concept of isolation that is etched into the DNA of containers that ultimately separates Linux and Windows.
Windows' process isolation may look like isolation comparable to that of Linux, yet unlike making system calls directly, Windows calls API functions that are delivered through internal DLLs. The implications here are that you are restricted to running containerized workloads on the Windows OS from which you have built from (i.e. running a WSC on Server 2016 must have been built from a Server 2016 base). So any real benefits of portability are really shot as a result.
Windows Containers on OpenShift - Unpacking the Why
We’ve come a long way since the days of Steve Balmer calling Linux ‘a cancer’ back in 2001. The Microsoft-Red Hat partnership has continued to go from strength to strength since the launch of Red Hat Enterprise Linux on Azure back in 2015. But considering a need to collaborate in the Kubernetes space, why would we deem it important to target OpenShift for Windows containers?
Fundamentally, Windows Server still maintains a considerable footprint amongst operating systems in the data centers of the enterprise today. What’s more, .NET continues to be widely used as an application framework amongst developers.

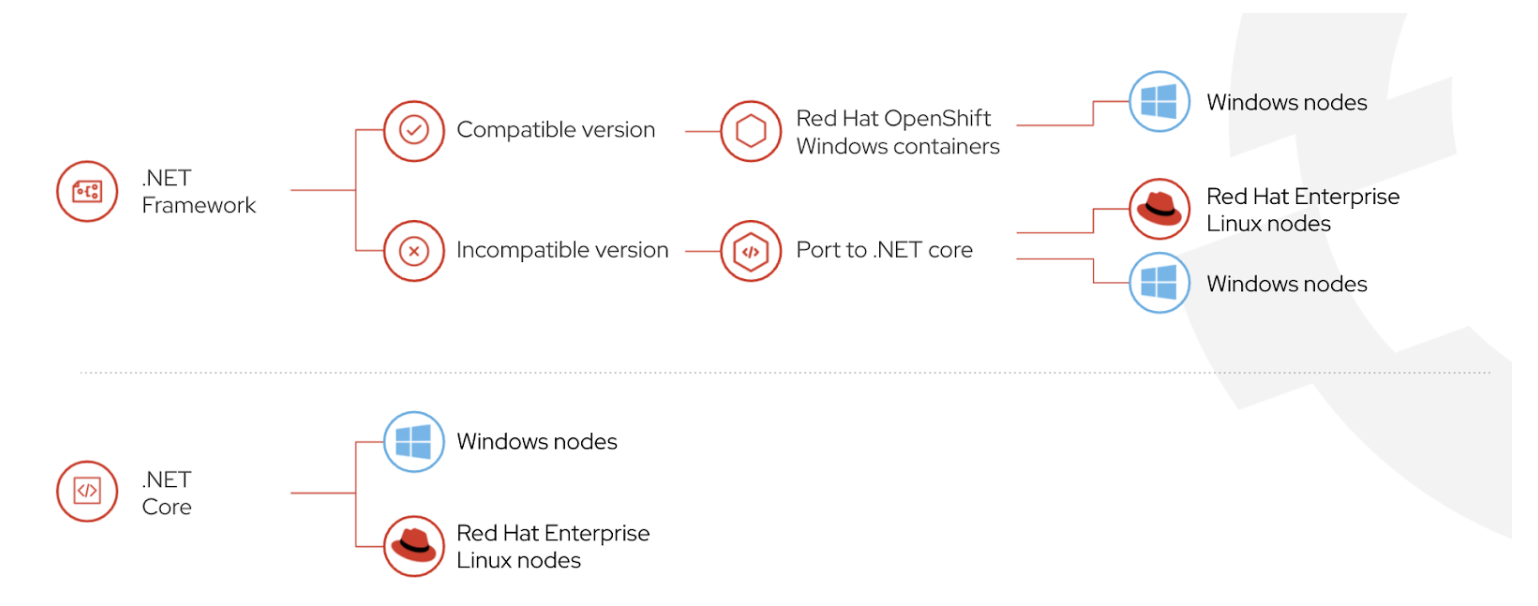

Given .NET Framework 4.7.2 and above are supported on Windows Server 2019 (the minimum OS version compatible for OpenShift workloads), we can follow the below decision tree to gauge if a path of porting or direct containerization should be taken for applications traditionally developed on Windows.
Source: Red Hat
Ultimately, the aforementioned patterns all tie into blueprints popularized by Amazon Web Services' ‘6 Rs’ strategy that has been around for some time now, and so too align with Red Hat’s overall vision of adopting an open hybrid cloud.
The net benefit being here:
- Minimizing our infrastructure footprint typically required for Windows applications by deploying them as lightweight containers
- Championing portability and adopting a ‘run anywhere’ model that is inherent to hybrid cloud
- Developers can realize greater velocity in application development made possible by Kubernetes and its ecosystem, resulting in faster time to market.
Windows Machine Config Operator (WMCO)

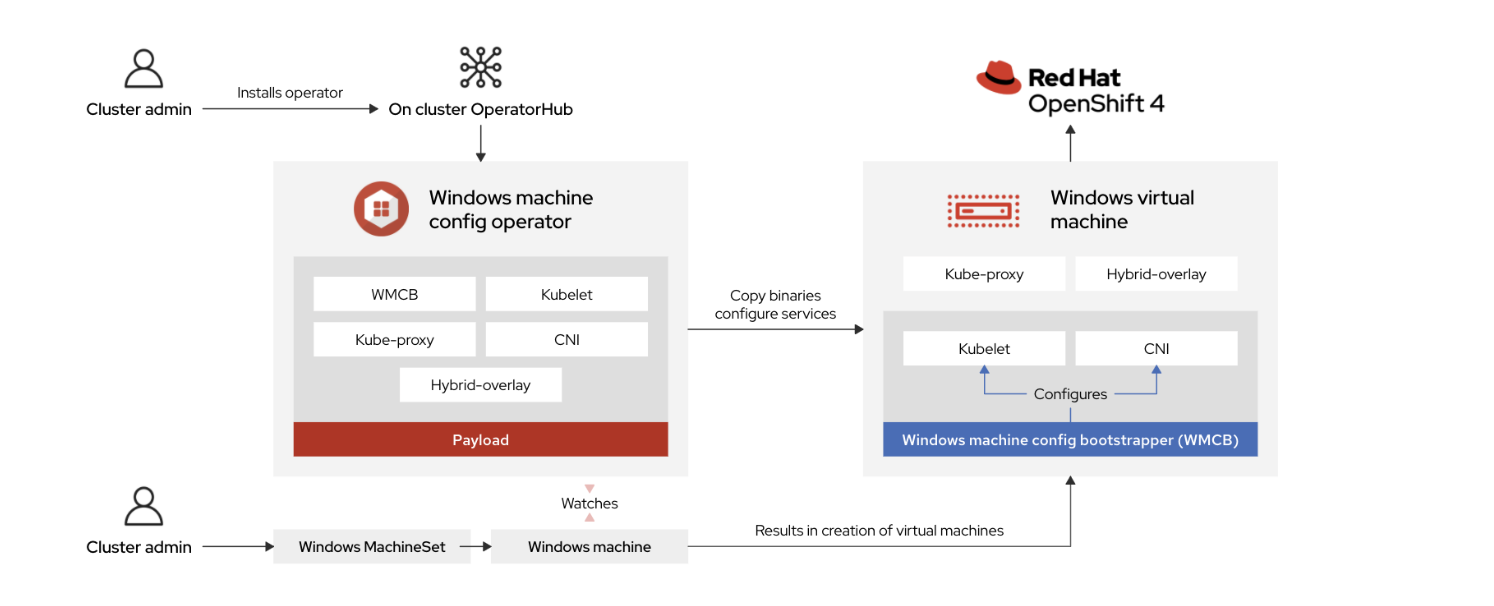

The Windows Machine Config Operator (WMCO) is the pivotal feature that allows a cluster administrator to add a Windows worker node as a day-2 operation.
We have a choice of either giving the OpenShift control plane the reigns to spin up a Windows machine via a MachineSet on any of the supported infrastructure platforms (vSphere, AWS or Azure at the time of writing) or alternatively, we can leverage the Bring-Your-Own-Host feature introduced in OpenShift 4.8.
The WMCO will perform all the necessary steps to configure the virtual machine so it can join the OpenShift cluster.
Source: Red Hat
The Windows Machine Config Operator (WMCO) is NOT responsible for updating the operating system of the Windows machine. The image upon creation is provided by the cluster administrator, and thereafter the machine’s OS upgrade and application of any Windows CVE/security patches are firmly the responsibility of the administrator as well.
Deploying a Windows Web Application
With a bit of theory out the way, we’ll now deploy a sample application running a webservice on the Windows Node. This application will be running inside a Windows Container on the Windows Node.
The WMCO spins up a special ssh container for us to remote shell into and then from there we can run the provided script to drop us into a PowerShell prompt on the Windows host.
$ oc -n openshift-windows-machine-config-operator rsh $(oc get pods -n openshift-windows-machine-config-operator -l app=winc-ssh -o name)
Running a systeminfo we can confirm we have a Windows 2019 node here as part of the cluster.
PS C:\Users\Administrator> systeminfo | Select-String "OS Name"
OS Name: Microsoft Windows Server 2019 Datacenter
Let us try and pull a Windows Server 2022 container image to this machine.
PS C:\Users\Administrator> docker pull mcr.microsoft.com/windows/servercore:ltsc2022-amd64
ltsc2022-amd64: Pulling from windows/servercore
a Windows version 10.0.20348-based image is incompatible with a 10.0.17763 host
FAIL! As we covered earlier, this is expected and in theory could be circumnavigated by resorting to Hyper-V isolation, but we know the WMCO hasn’t configured our machine in this way.
We have a bit of self-acknowledgement from Microsoft themselves here too, stating that “decoupling the User/Kernel boundary in Windows is a monumental task and highly non-trivial” and is something they’re looking to improve in future releases of Windows Server and Client.
Given that it’s 2022, I’m eager for my infrastructure to remain relevant and up-to-date, so what I can do is perform an in-place upgrade of my Windows Server OS to 2022 and that should make this container image I will try to ultimately use for my application, all happy and compliant.
This Windows node is one that I have rolled out as a Bring-Your-Own-Instance (BYOH) node as explained here. Irrespective however if BYOH or a MachineSet is opted for, the upgrade of the OS is handled outside OpenShift and the WMCO, so this is all on me to do!
Sparing those details from this post, once upgraded I can log back into the host to first confirm my new OS version and reattempt the pulling of the 2022 image.
Windows Container images can be VERY large. In some cases, a small base image can be 8GB in size, and therefore it is suggested to pre-pull any base images you need.
PS C:\Users\Administrator> systeminfo | Select-String "OS Name"
OS Name: Microsoft Windows Server 2022 Datacenter
Now, I can grab a ready made Deployment and Service for my Windows web server although with one minor change. I will update the image tag to reflect the 2022 Core image.
$ wget -O - https://gist.githubusercontent.com/suhanime/683ee7b5a2f55c11e3a26a4223170582/raw/d893db98944bf615fccfe73e6e4fb19549a362a5/WinWebServer.yaml | sed -e 's/ltsc2019/ltsc2022/g' | oc apply -f -
Remember to note that the Deployment has a toleration so it can run on the Windows Node.
Let’s confirm we’re looking all good from a Pod perspective.
[lab-user@bastion ~]$ oc get pod
NAME READY STATUS RESTARTS AGE
win-webserver-5db7f85d96-9vm96 1/1 Running 0 10s
And with that we can expose the Service and retrieve the Route to access our landing page.
$ oc expose svc/win-webserver
route.route.openshift.io/win-webserver exposed
$ oc get route
NAME HOST/PORT PATH SERVICES PORT TERMINATION WILDCARD
win-webserver win-webserver-windows-workloads.apps.cluster.test.com win-webserver 80 None

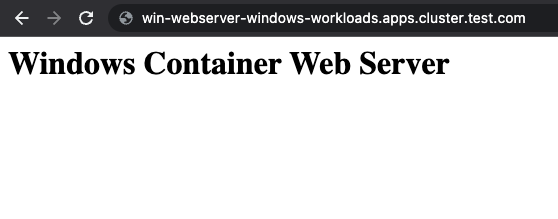

And there we have it, a Windows Sever 2022 container image serving a web page on a Windows Server 2022 worker node! 😄
Wrap Up
Hopefully this post has demonstrated the ease in which we can bring Windows workloads to OpenShift with very low friction in order to capitalize on the benefits of containerization. And we don’t have to stop there, we can think about bringing other OpenShift hosting features like OpenShift Virtualization to cater for further use cases.
Microsoft’s “love” for Linux has existed for almost a decade now (even Steve’s come around) which has really paved the way for developments like these covered in this post. The net result being that they’ve really moved the needle for the hybrid cloud strategies of Red Hat and Microsoft’s customers alike and highlight just how much organisations can benefit from large-scale consolidation efforts across their infrastructure.
